HOW TO SETUP ACCOUNTING INTEGRATION

This is just an overview of the process - your Activation team will normally look after this for you

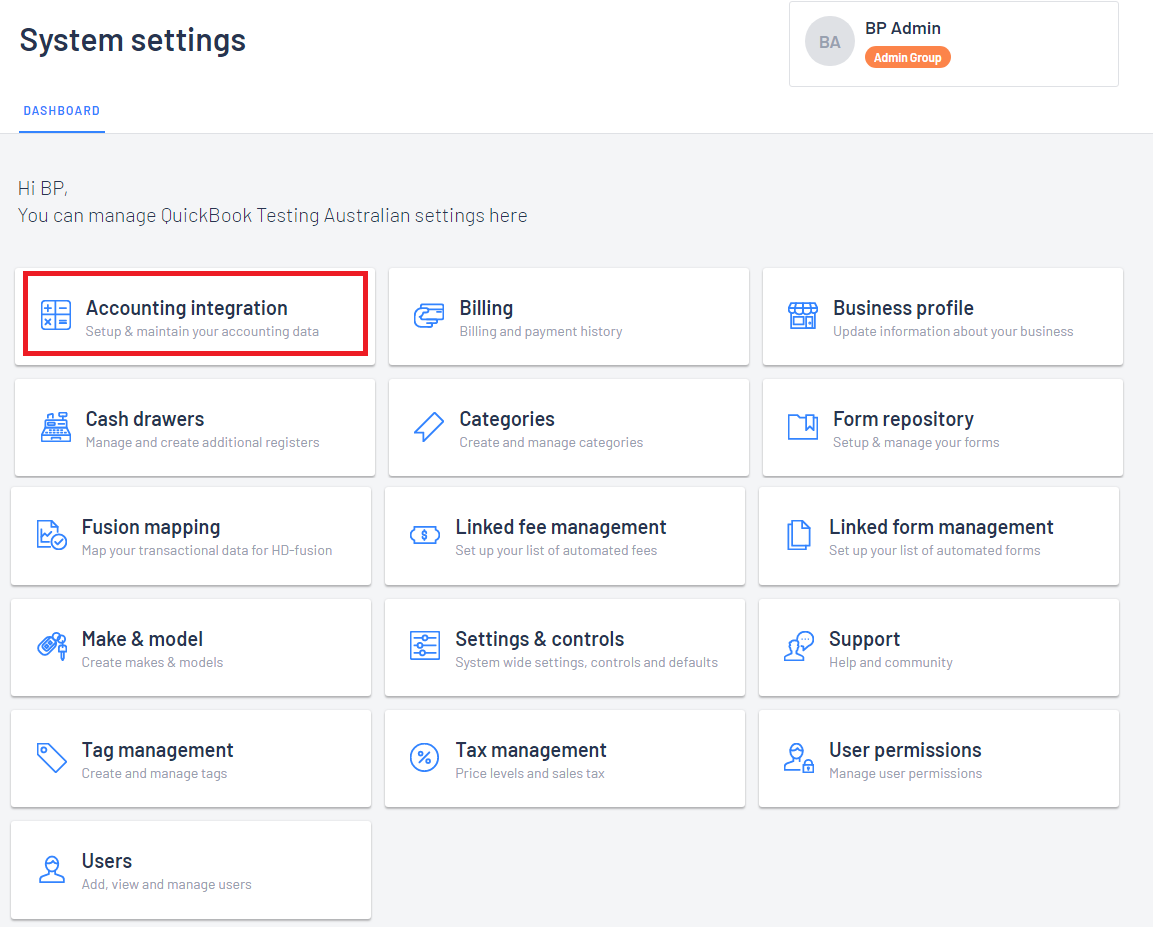

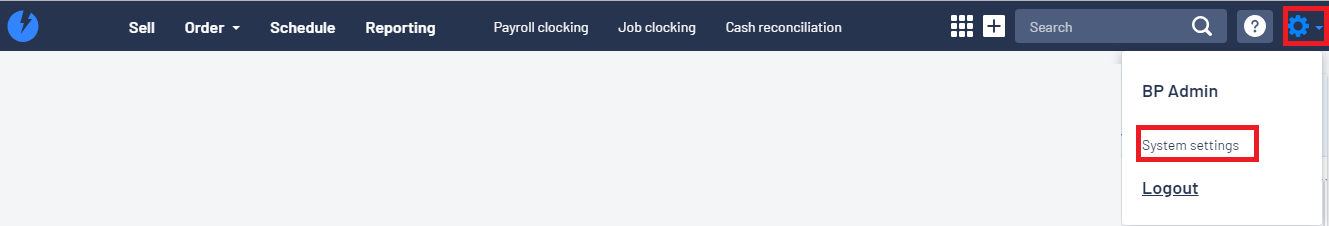

1. From the Blackpurl Header > click on > System settings

2. From the System Settings Dashboard > click on

3. Work through each step - take your time as the system will not allow you to progress until you have finalised each section.

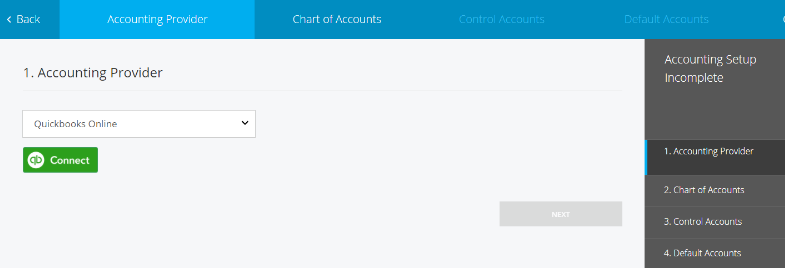

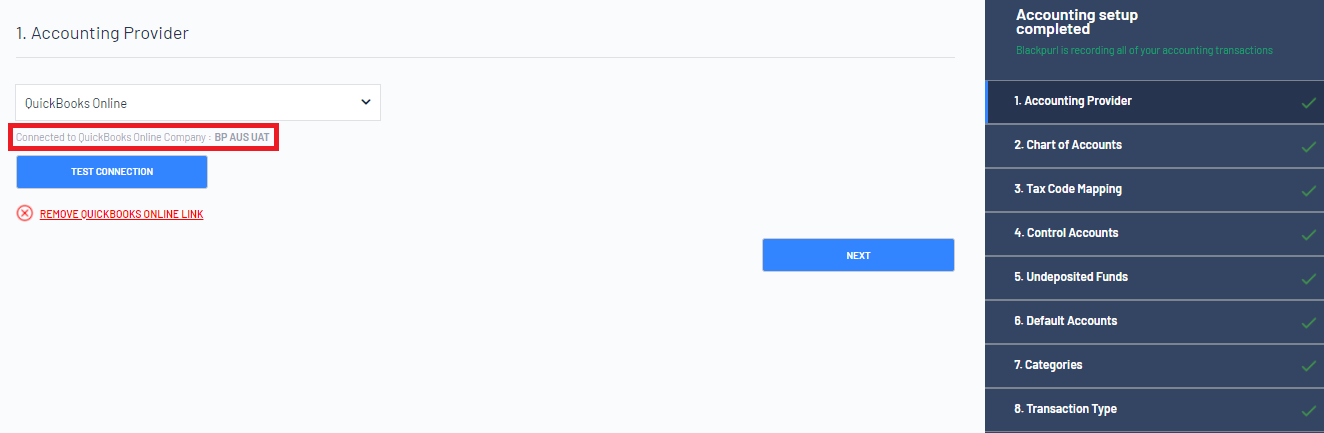

• From the dropdown select your Accounting Provider and select QuickBooks Online.

• Then click on

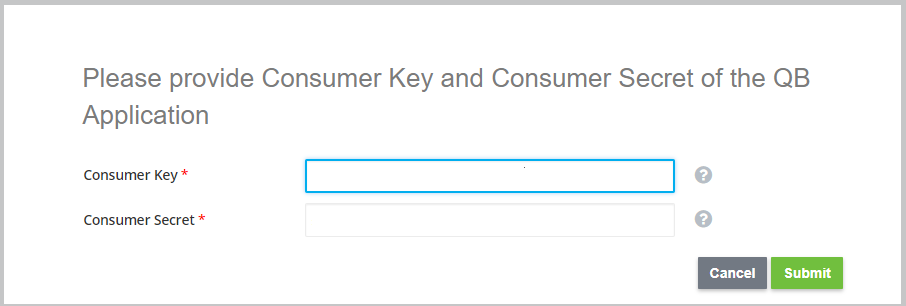

• At this time, you will be asked for the Consumer Key and Consumer Secret.  Your Activation Team will look after this section for you
• Once you have entered the information click on .

• The QuickBooks log in page will pop up for you to type your username and password into.

QuickBooks may ask you to go through a few checks, such as

• Verification - just follow the prompts
• Confirm the company name of your QuickBooks Online - just follow the prompts
• Authorise the connection and sharing of data - click on Authorise

Then just continue to Step 4

• For XERO setup you will require the assistance of your Activation Team
• Please ensure that you have given Blackpurl access to your XERO accounting package prior
• Once the link is established, your Activate Team we will also sync your Chart of Accounts into the Accounting Integration.

Then just continue to Step 4

Click on to continue to the Chart of Account tab.

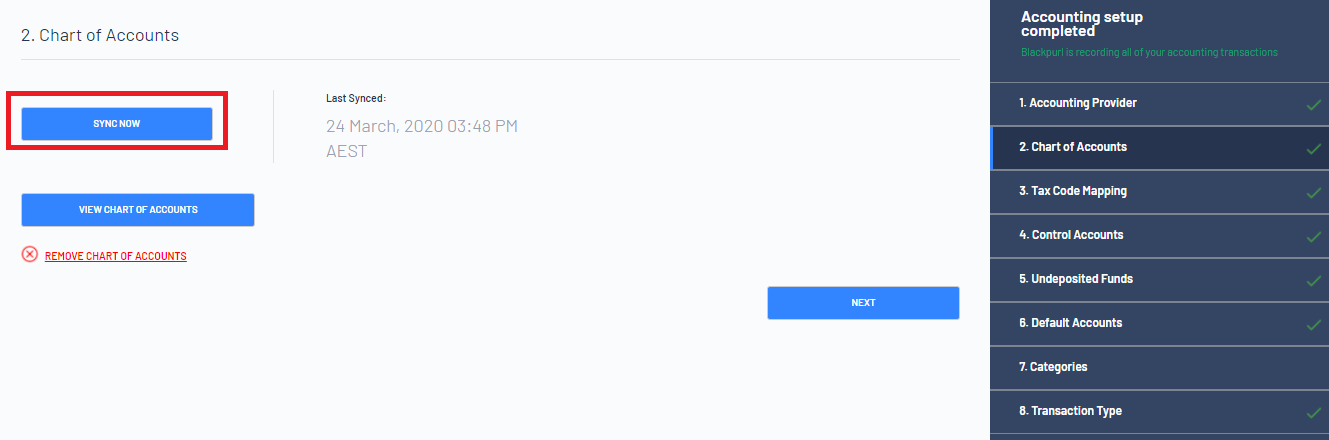

4. Chart of Account tab

• Click to sync the latest QuickBooks Chart of Account with Blackpurl.

• As Blackpurl Support has already synced your Chart of Accounts, continue to the next step.

Once the systems have synced, click on  to go to the next tab.

5. This Step is FOR AUSTRALIAN BLACKPURL DEALERS ONLY with Prices Includes Tax setting

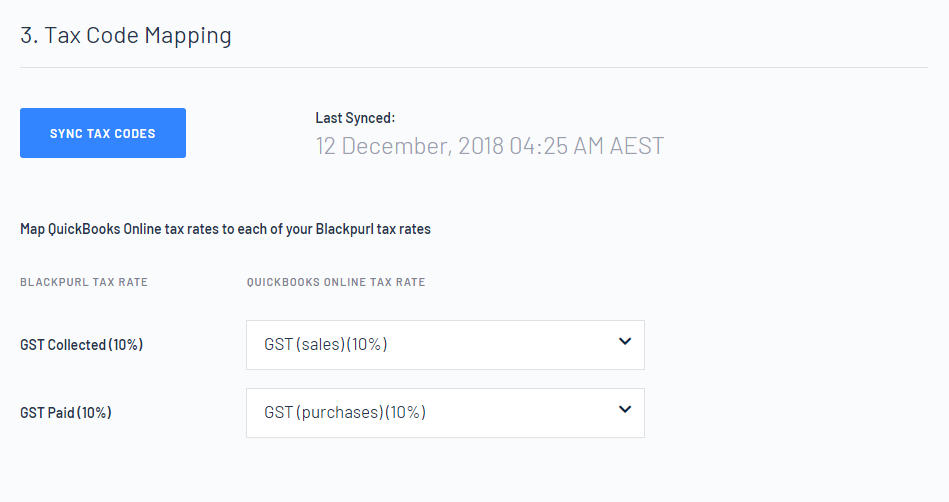

Tax Code Mapping tab

For Australian Blackpurl Dealers there is an additional step required - Tax Code Mapping.
On each of the Blackpurl Tax Rate you will need to map the Tax Rate by clicking on  and making your selections.

Work your way down the tax rates until completed then click on as this will finalise the Tax Code Mapping.

Once the Tax Codes have synced > click on continue to Step 6 - Control Accounts tab

6. Control Accounts tab

On each of the Control Accounts, click on to select the relevant General Ledger Accounts.

Please take your time to make sure that you are selecting the correct General Ledger Accounts.
All fields must have a General Ledger Account listed or you will not be able to move to the next section.

For the Cash Sale Customer and Internal Service Customer - these customers will first need to be setup or already be customers in QuickBooks.
It is the Customer ID from QuickBooks that you need to enter into these fields.

To get the correct Customer ID from QuickBooks, see below:

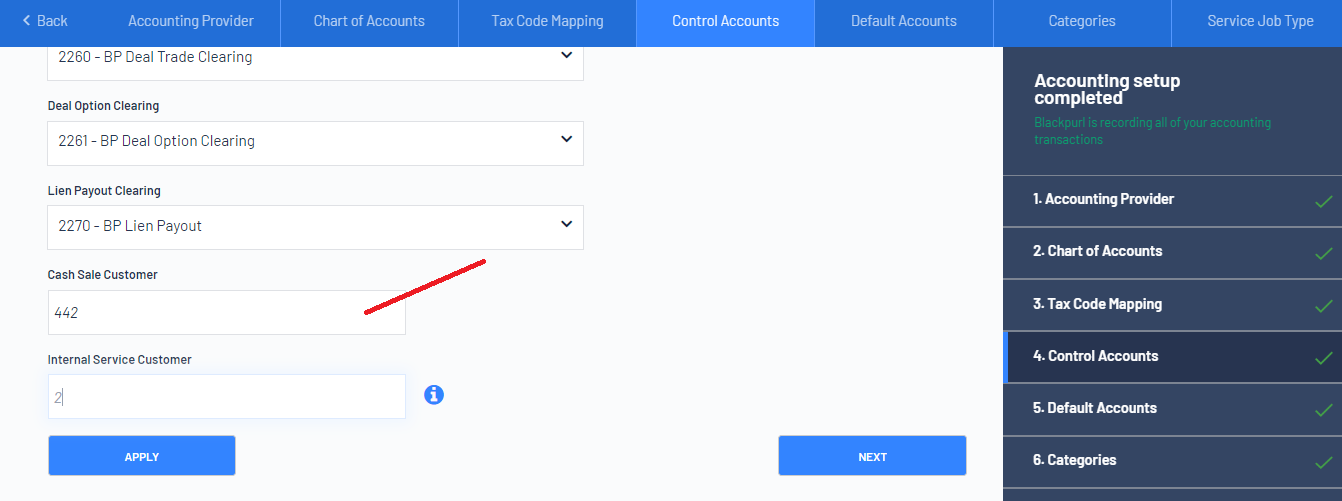

Then you will need to type (copy and paste also works) the relevant Customer ID into the Cash Sale Customer field:

**

Do the same process to find and enter in the Internal Service Customer ID as well.

XERO

For the Cash Sale Customer and Internal Service Customer - these customers will first need to be setup or already be customers in XERO.
It is the Customer ID from XERO that you need to enter into these fields.

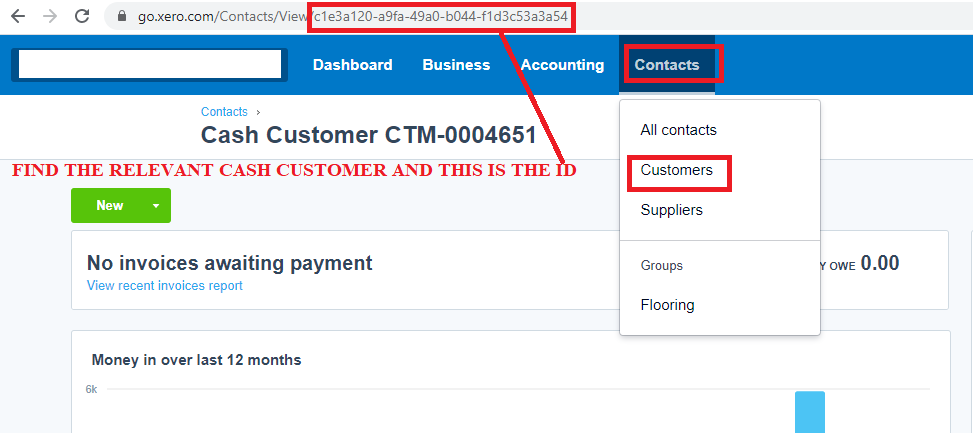

To get the correct Customer ID from XERO, see below:

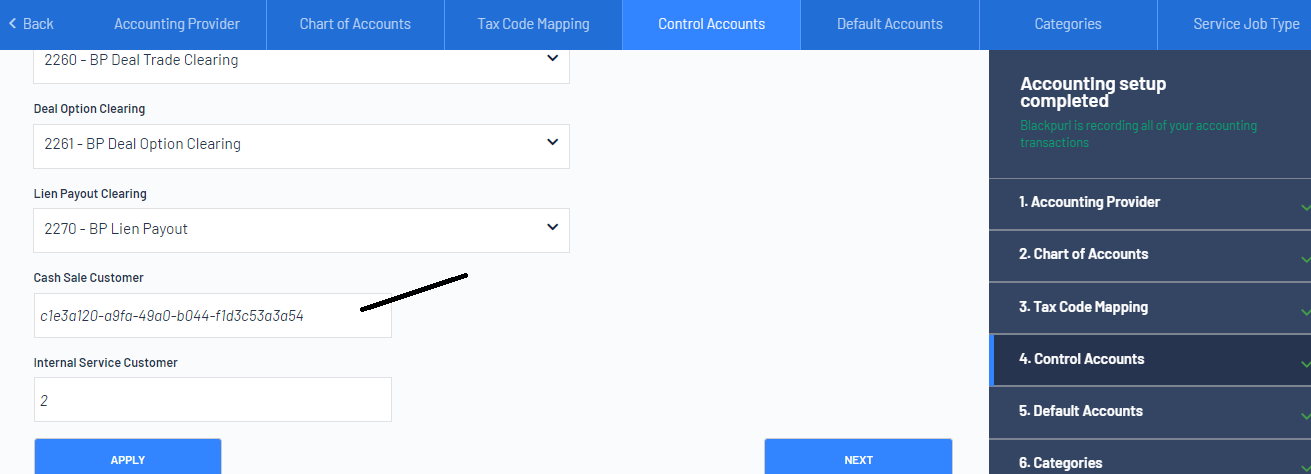

Then you will need to type (copy and paste also works) the relevant Customer ID into the Cash Sale Customer field:

** Do the same process to find and enter in the Internal Service Customer ID as well.

Once you have finished, click on and then .

7. Undeposited Funds tab

            For each Payment Method that you have setup in your Blackpurl (under System Settings > Settings and Controls -

            Payment Methods), you can now assign a individual / different General Ledger account to each payment type.

            The system will also allow you to use the same General Ledger account

            Just work your way down the list of Payment Methods and assign the relevant General Ledger account

When funds are receipted in a Customer Order (both Deposit and Checkout sections), the General Ledger account indicated on the relevant Payment Type is where the funds will show in your Accounting Package.

Once you have assigned a General Ledger account for each Payment Type click  and

         to take you to the next section - Default Accounts tab

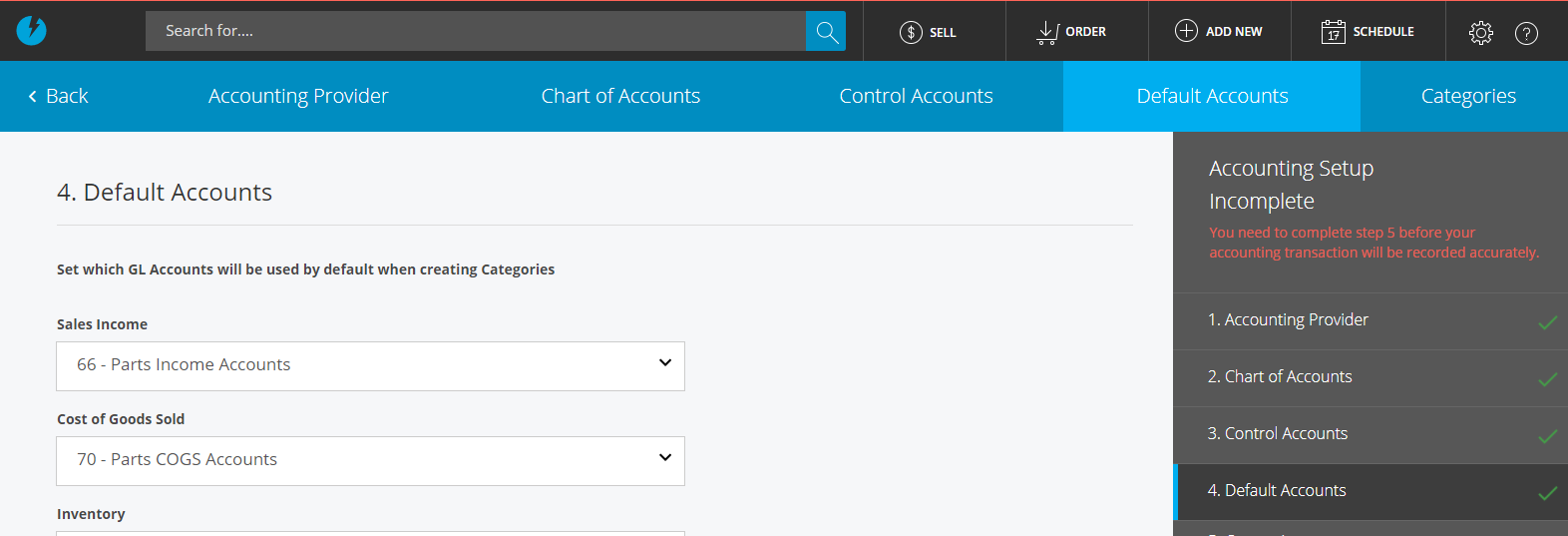

        8.  Default Accounts tab

Once you have finished the list, click on and then to take you to the Categories tab.

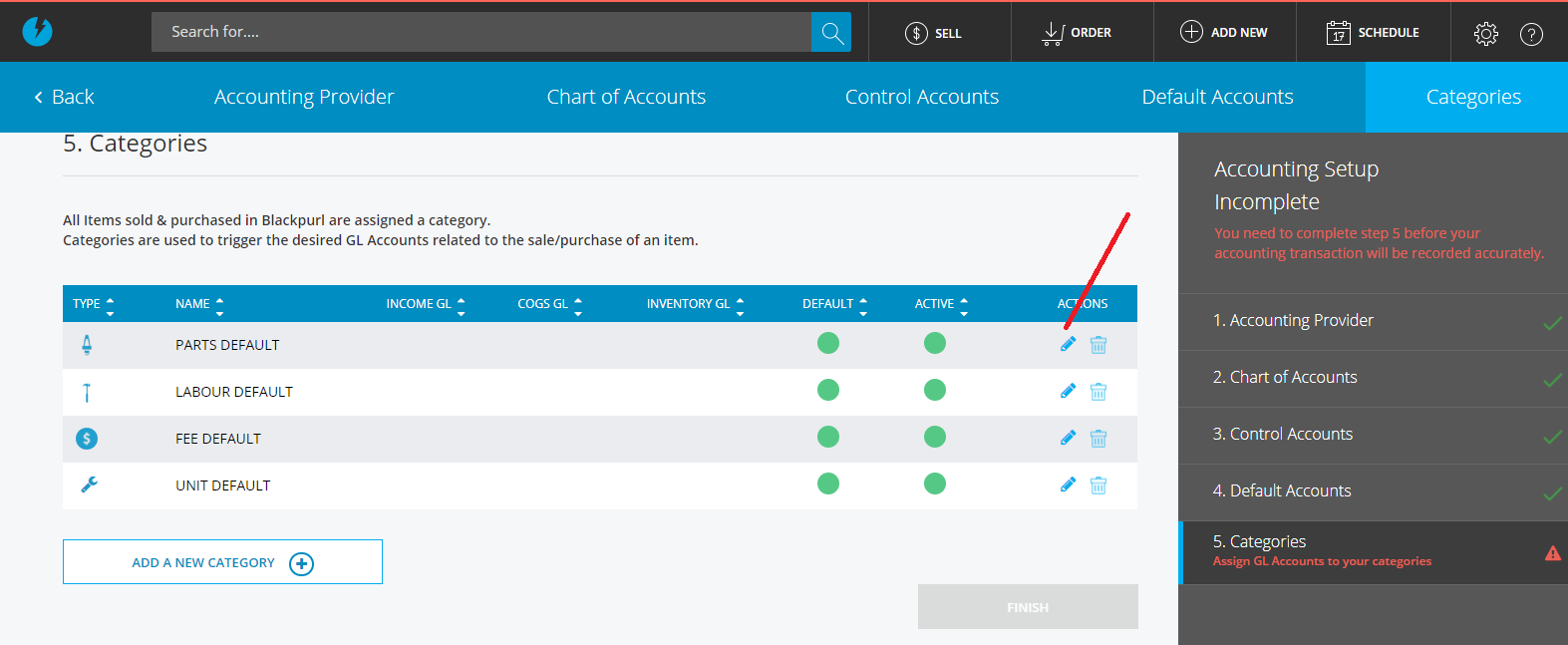

        9. Categories tab

On each Category line - click on and it will open the Edit Category screen for you to add in the relevant General Ledger Accounts to and once you are finished click .

At this point you can also add in new Categories (if required) by clicking

Once you have finished with your Categories tab > click take you to the Transaction Type tab.

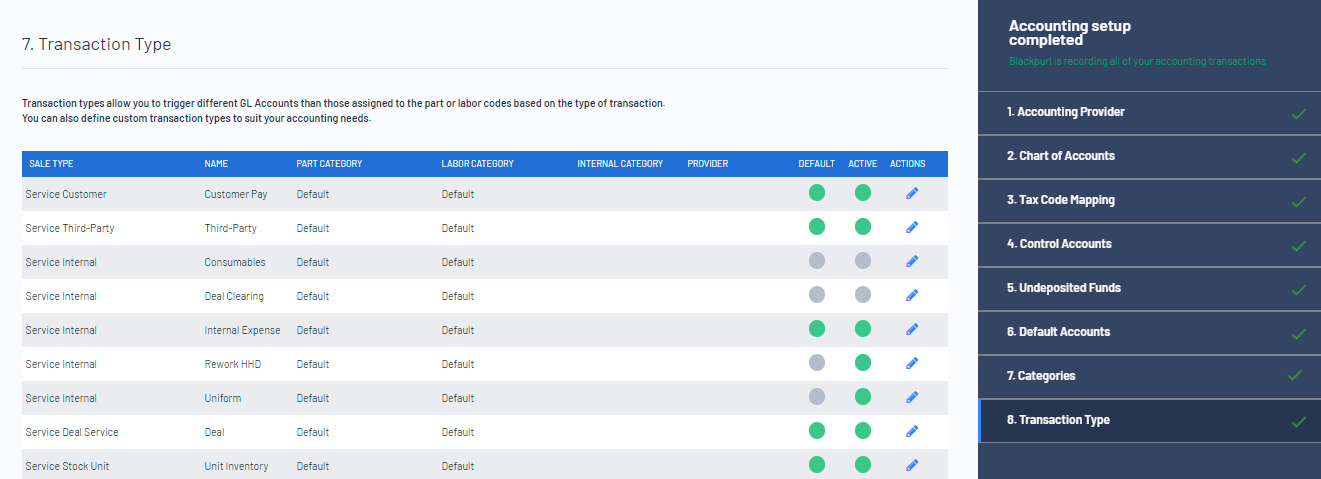

    10. Transaction Type tab

This section will allow you to create new transaction types for use in either Service Jobs and Parts and Accessories sections.

It will allow you to allocate specific Categories to those transaction types as you may want to

            map certain transactions to certain general ledgers in your accounting package.

For example you may wish to create additional Third Party (ie Insurance) or Internal (ie charge out consumables) job types.

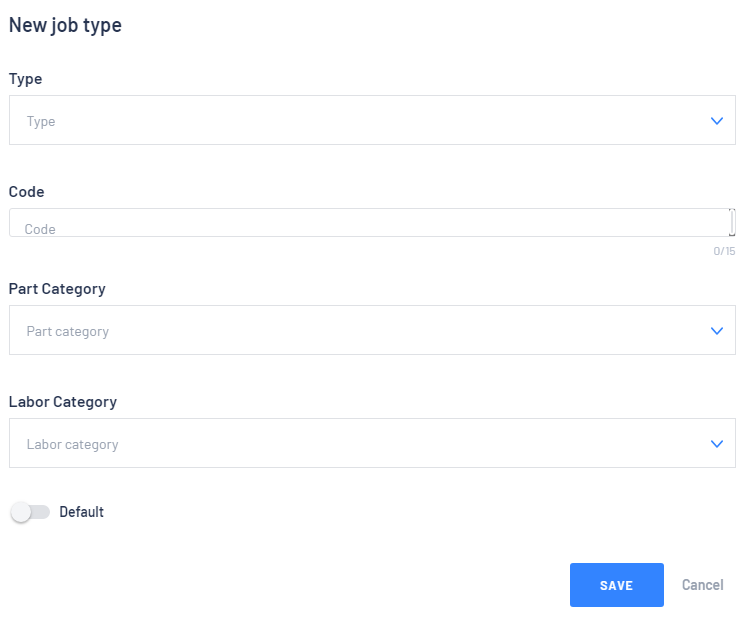

To create a new Sales Type,  click to complete New Job type window

• Type - select if it is to be a Service Job or Part Sales Transaction Type.  Basically where do you want to use this new Transaction Type - on a Service Job or in a Parts & Accessories section?
• Code - what is the name of your new Transaction Type
• Part Category - indicate what part category this transaction type will follow ie what General Ledger mapping
• Labour Category - indicate what Labour category this transaction type will follow ie what General Ledger mapping
• Indicate if is to be the Default then click

If you need to review or change any of the settings or you do not have the relevant green ticks, click on the relevant tab
Once you have finished and ready to implement, click on .

    12.  The last step is your Activation Team will arrange to "copy" over your Blackpurl  Customers and Vendors to your

accounting package.
